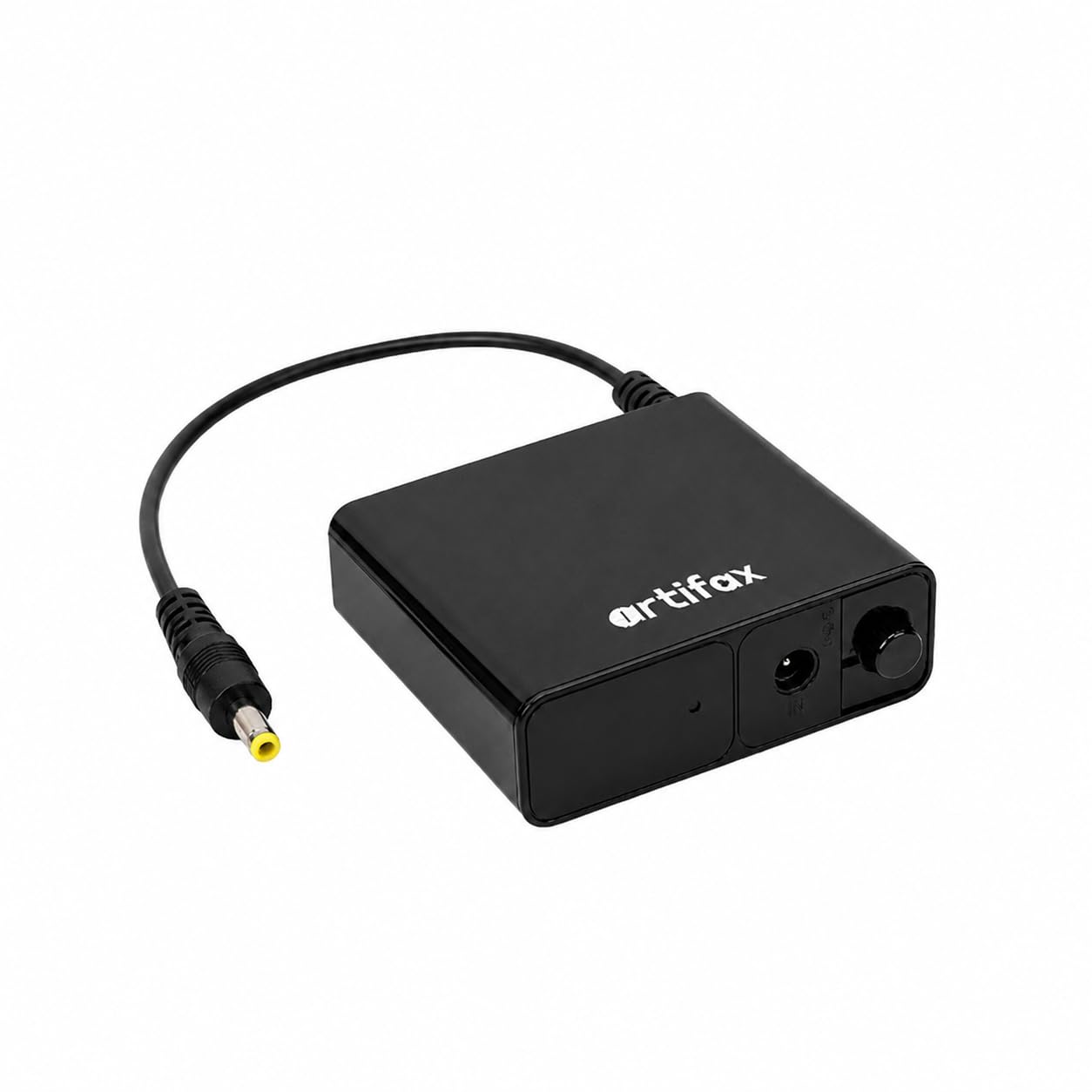

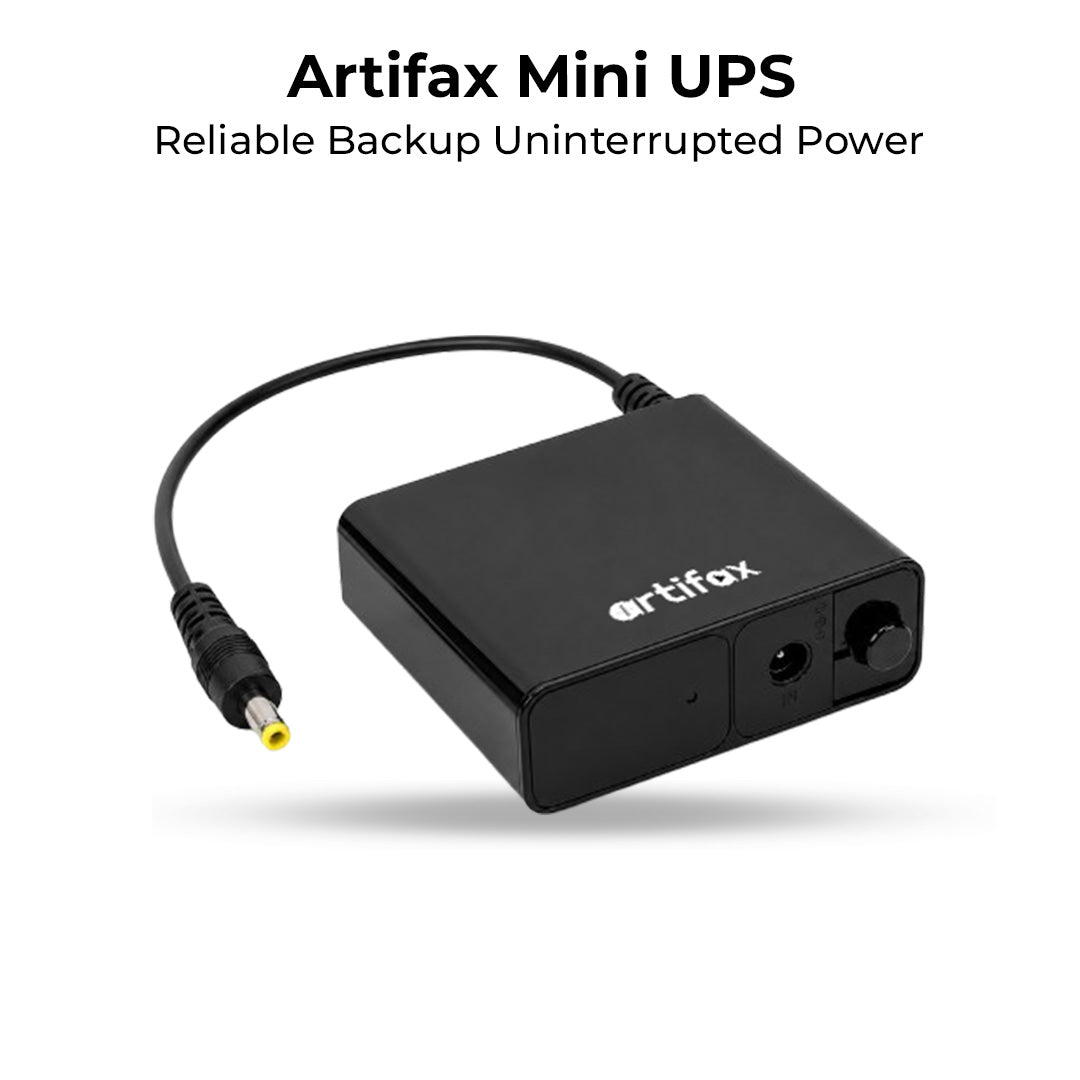

Artifax 12W Mini UPS is a compact DC-DC backup power solution designed to provide uninterrupted power to compatible 12V devices.
With a rated 12V DC input and 12V DC output, the Mini UPS delivers up to 12W output power and features 0ms transfer time for no-interruption switching.
Powered by a 2600mAh Li-ion battery configured in 2S1P, it provides reliable backup support while incorporating multiple protection features including input reverse polarity protection, overcharge protection, over-current protection, short-circuit protection and over-temperature protection.
Key Features: • 12W rated output power • 12V DC output • 0ms transfer time for uninterrupted switching • 2600mAh Li-ion battery • 2S1P battery configuration • 1 output port • DC Barrel Jack input • Input voltage range: 11.80V–13V DC • Input current: 1.2A–2A • Over-current protection: 2A • Short-circuit protection • Over-temperature protection at 70°C • Compact dimensions: 106 × 85 × 38 mm • Made in India
Protection Features: • Input Reverse Polarity Protection • Over Charge Protection • Over Current Protection • Short Circuit Protection • Over Temperature Protection

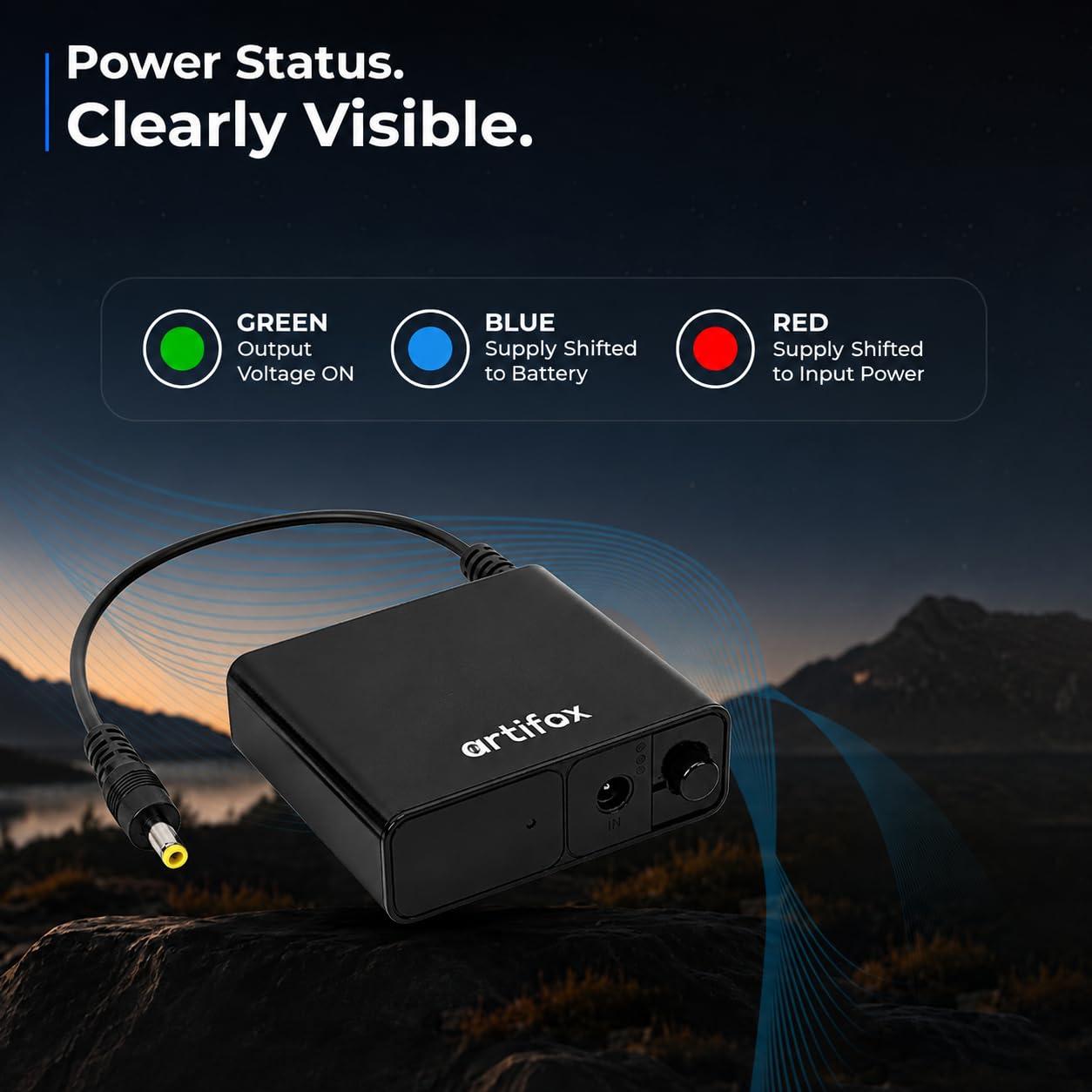

LED Indicators: • Green LED – Output Voltage ON • Blue LED – Supply shifted to battery • Red LED – Supply shifted to input power
Ideal for compatible 12V DC applications requiring uninterrupted backup power.
